Bending Moment Quiz 5

ChatGPT-Driven Feedback

The bending moment quizzes serve as a crucial checkpoint to evaluate your grasp of the foundational concepts necessary for our structural analysis course. Should you encounter difficulties with these quizzes, it suggests that enhancing your knowledge in engineering mechanics - statics is essential before you can successfully embark on our structural analysis journey.

Each quiz features 4 questions. Carefully answer each one in the provided input fields. Once you are confident in your responses, click the submit button. ChatGPT will then review your answers and offer insightful feedback to help you improve.

Question 1

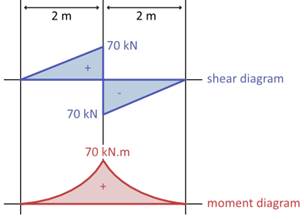

Based on the shear and moment diagrams shown below, describe the forces acting on the free-body diagram of the structural system.

Provide an example of a structural system that could be represented by the shear and moment diagrams shown.

Question 2

Consider the beam segment shown below where M(x) represents the bending moment at the right end of the segment. The left end of the segment is free.

Write the moment equation for the beam segment.

Question 3

The shear equation for a simply supported beam is: \(V(x) = 20 - \frac{5}{2} x\). The bending moment in the beam reaches its maximum value at what \(x\) value?

Question 4

Consider the beam shown below. What is the moment equation for the left segment of the beam, where \( 0 \le x \le 2 \)?
