Beam Analysis Quiz 5

ChatGPT-Driven Feedback

The beam analysis quizzes serve as a crucial checkpoint to evaluate your grasp of the foundational concepts necessary for our structural analysis course. Should you encounter difficulties with these quizzes, it suggests that enhancing your knowledge in engineering mechanics - statics is essential before you can successfully embark on our structural analysis journey.

Each quiz features 4 questions. Carefully answer each one in the provided input fields. Once you are confident in your responses, click the submit button. ChatGPT will then review your answers and offer insightful feedback to help you improve.

Question 1

A beam is subjected to two concentrated loads.

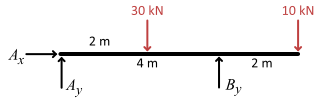

The beam’s free-body diagram can be drawn as shown below.

We are asked to identify the moment equilibrium condition about point A. Select the correct equation(s) from the list below.

Question 2

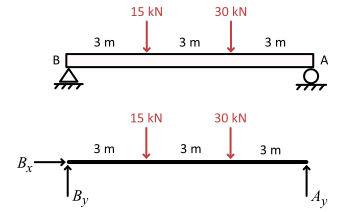

A simply supported beam and its free-body diagram are shown below.

The following equilibrium equations have been written for the above diagram.

Using the above equations, calculate \( A_y\) and \(B_y\).

\( A_y\) equals:

\( B_y\) equals:

Question 3

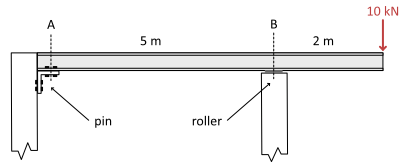

Consider the beam shown below.

Given the following four diagrams, identify the correct free-body diagram(s) for the beam.

(A)
(B)
(C)
(D)

Question 4

From the structural analysis standpoint, what is the main difference between a beam and a truss? How differently do the two structures carry their loads?
