Shear Force Quiz 1

ChatGPT-Driven Feedback

Our shear force quizzes are designed to assess your understanding of the shear force concept and its patterns in beams. These quizzes align with key parts of our lectures on the topic, as presented in our online course.

Each quiz features 4 questions. Carefully answer each one in the provided input fields. Once you are confident in your responses, click the submit button. ChatGPT will then review your answers and offer insightful feedback to help you improve.

Question 1

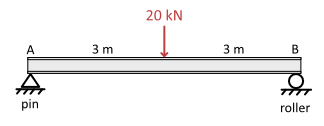

Consider the simply supported beam shown below.

The pin support at A has a 10 kN vertical reaction force. What is the magnitude of the shear force at A?

Question 2

For the beam shown in Question 1, what is the magnitude of the shear force at the application point of the 20 kN load?

Question 3

For the beam shown in Question 1, what is the magnitude of the shear force 2 meters to the right of A?

Question 4

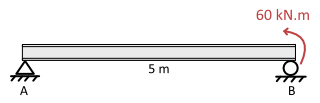

A simply supported beam is subjected to a concentrated moment as shown below.

What is the shear force magnitude at the midpoint of the beam?
