Shear Force Quiz 3

ChatGPT-Driven Feedback

Our shear force quizzes are designed to assess your understanding of the shear force concept and its patterns in beams. These quizzes align with key parts of our lectures on the topic, as presented in our online course.

Each quiz features 4 questions. Carefully answer each one in the provided input fields. Once you are confident in your responses, click the submit button. ChatGPT will then review your answers and offer insightful feedback to help you improve.

Question 1

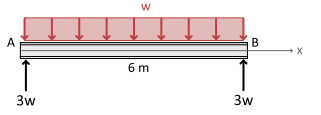

The free-body diagram of a simply supported beam subjected to a distributed load is given below.

Write the shear equation for the beam.

Question 2

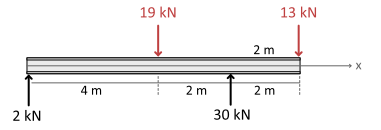

Consider the following free-body diagram.

Write the shear equation for the middle segment of the beam where 4 \(<\) x \(<\) 6.

Question 3

A cantilever beam with an overall length of 10 meters is partially subjected to a distributed load, as shown below.

Write the shear equation for the left segment of the beam where 0 \(<\) x \(<\) 6.

Write the shear equation for the right segment of the beam where 6 \(<\) x \(<\) 10.

Question 4

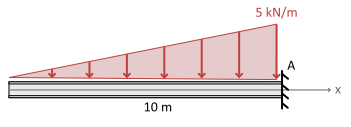

A cantilever beam is subjected to a triangular load, as shown below.

Write the shear equation for the beam.
